Itron Indonesia – Menjual Berbagai Jenis Meter Itron
Itron Indonesia menawarkan solusi lengkap dalam pengukuran, kontrol, analisa pada air, listrik, gas serta energi pemanas air dan ruangan. Meter ITRON telah terpasang lebih dari 300 juta meter di seluruh dunia.

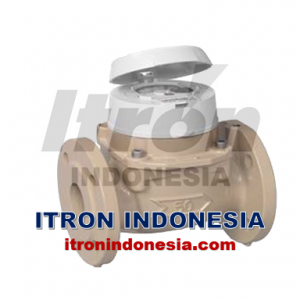

WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)WATER METER ITRON Woltex 3 INCH DN80
SPESIFICATION
| SIZE | 3 INCH ( 80 MM ) |
| STARTING FLOWRITE | 0.3 M3/H |
| ACCURACY ± 2% | 1.2 M3/H |
| ACCURACY ± 5% | 0.75 M3/H |
| ADMISSIBLE PEAK FLOW (10′ MAX) | 250 M3/H |
| MAX. ADMISSIBLE FLOWRITE (CONTINUOUS) | 120 M3/H |
| HEAD LOSS AT QMAX | 0.55 BAR |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
WATER METER ITRON Woltex 8 INCH (100 mm)
WATER METER ITRON Woltex 8 INCH (100 mm)
WATER METER ITRON Woltex 8 INCH (100 mm)
WATER METER ITRON Woltex 8 INCH (100 mm)WATER METER ITRON Woltex 8 INCH DN200
SPESIFICATION
| Size | 200 mm (8 inch ) |
| Type | Woltex |
| Starting Flowrate | 1.6 m³/h |
| Accuracy ± 2% From* | 3.5 m³/h |
| Accuracy ± 5% From* | 2.5 m³h |
| Admissible Flow ( 10’Max ) | 1000 m³/h |
| MAX.Admissible Flowrate ( continuous) | 800 m³/h |
| Head loss at Qmax | 0.12 Bar |
| max.Admissible temperatur | 50 º C |
| max.Admissible Presure | 20 Bar |
| Indicating range | 99999999 m³ |
| Cyble HF pulse weigt | 1000 L |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)GAS METER ITRON ACD G1.6
SPESIFICATIONS
| Gas Type | Natural gas, LPG and all non-corrosive gases | ||
| Cyclic Volume | 0.7 dm³ | ||
| Temperature Range | Gas | -10°C to +40°C | |
| Ambient | -10°C to +40°C | ||
| Storage | -30°C to +70°C | ||
| Maximum Operating Pressure | Steel | 0.5 bar | (0.1 bar HTL version) |
| Aluminium | 0.5 bar | (1.0 bar optional) | |
| Measuring Range | G0.6 | Qmin | 0.016 m³/h |
| Qmax | 1 m³/h | ||
| G1 | Qmin | 0.016 m³/h | |
| Qmax | 1.6 m³/h | ||
| G1.6 | Qmin | 0.016 m³/h | |
| Qmax | 2.5 m³/h (3 m³/h optional) | ||
| Casing Material | Sheet steel | ||
| Aluminium alloy | |||
| Accuracy | Class 1.5 | ||
| Approval | MID (04/22/EC) module H1 | ||
| Local approvals like IRAM2717:2000, Portaria 31/1997 | |||
| NOM-106-SCFI-2000 etc. | |||
| Flow Direction | Left to Right (standard) or Right to Left (optional) | ||
| Connections | Metric standards | M26 x 1.5 / M30 x 2 | |
| IS0228 standards | G7/8” / G3/4” / G1”1 | ||
| NPT standards | (Upon request) | ||
| BS746 standards | 1” | ||
| Others | W28.8×12 | ||
| Specials connections on request | |||
| Colour | Grey RAL 7040 for Latin America | ||
| Grey RAL 7042 for Asia | |||
| Other colors on request | |||
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)GAS METER ITRON RF1
SPESIFICATIONS
| Gas Type | Natural Gas, air, propane, butane, nitrogen and all non-corrosive |
| Metrology | Meter conforming to Australian Standard AS4647 and OIML R137-1 |
| Accuracy | Maximum permissible errors (% of
measurement) +/- 3% from Qmin. to 0.1 Qmax. +/- 1.5% from 0.1 Qmax. to Qmax. |
| Pressure drop | 125Pa at 8.5 m3/h (gas) |
| Temperature range | 2 dm3 |
| Maximum Operating Pressure | Operating: -10°C to +60°C
Storage: -40°C to +70°C |
| Measuring Range | 50kPA (1 Bar option) |
| Casing Material | Qmin 0.016 m3/h
Qmax 10 m3/h |
| Totalizer | Aluminium die-cast case with grounding
and polyester powder painting (resist 1000h salt spray test) |
| Transmission Rate | 0.01 m3 / rotation |
| Transmission System | Cyble™ target |
| Approval | Australian NMI-R137 |
| Dust and rain protection | IP67 (according EN60529) |
| Connections | 1” (BS746) |
| Flow Direction | Left to Right |
| Colour | Mushroom color (Y65 in accordance with
AS 2700 -1985) |
| Back Flow Protection | Back run stop |
| Transmission | Magnetic coupling |
| Weight | 3 kg |
| Pressure tap | Outlet connector – Thread no.2 B.A. (Ø4,7) according to PRS 11 |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Turbine Fluxi-2000-TZ-EN-V3.0.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)GAS METER ITRON ROTARY METER DELTA
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Rotary Delta-EN-V4.1.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP. 081260003742
email : admin@intidunia.id
WATER METER ITRON Multimag 1 INCH (25 mm)
WATER METER ITRON Multimag 1 INCH (25 mm)
WATER METER ITRON Multimag 1 INCH (25 mm)
WATER METER ITRON Multimag 1 INCH (25 mm)FLOW METER ITRON Multimag 1 INCH (25 MM)
SPESIFICATION
| Size | : 25 mm ( 1 Inch ) |
| Type | : Multimag |
| Kelas Akurasi/Ratio | : R 50 |
| Aliran Mula | : <25 L/h |
| Aliran Minimum (Q1) | : 80L/h |
| Aliran transisi (Q2) | : 320 L/h |
| Aliran Nominal ( Q3) | : 4.0 m³/h |
| Aliran Maksimum (Q4) | : 5.0 m³/h |
| Aliran Extra multimag | : 7.0 m3/h |
| Temperatur Metrologis maks | : 30 ºC |
| Temperatur Kerja maksimum | : 50 ºC |
| Tekanan Kerja Maksimum | : 16 Bar |
| Pembacaan Maksimum | : 9999* m³ |
| Skla Pembacaan Terkcil | : 0.02 L |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
SPESIFICATION
| SIZE | ¾ INCH ( 20 MM ) |
| NOMINAL FLOWRATE | 2.5 M3/h |
| MINIMUM FLOWRATE | 0.05 M3/h |
| MAXIMUM FLOWRATE | 5 M3/h |
| TRANSITIONAL FLOWRATE | 0.2 M3/h |
| MIN READING | 0.00002 M3 |
| MAX READING | 9.999 Or 99.999 M3 |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP. 081260003742
email : admin@intidunia.id
Blog Kami
ITRON WOLTEX 2 INCH (50 mm)
Water meter Itron merupakan flow meter unggulan dengan teknologi yang sangat canggih dan telah terbukti merupakan salah satu brand untuk
ITRON FLUXI 2000/TZ
Gas Meter Itron adalah alat yang digunakan untuk mengukur laju aliran atau kuantitas gas yang bergerak atau mengalir. Teknik / cara
Kategori Produk
WATER METER
WATER METER ITRON WOLTEX M 65MM 2½ INCH
WATER METER ITRON WOLTEX M 65MM 2½ INCH
WATER METER ITRON WOLTEX M 65MM 2½ INCH
WATER METER ITRON WOLTEX M 65MM 2½ INCHJual Flow Meter Itron 2.5 Inch – FLOW METER ITRON Woltex M 65mm 2.5 INCH – Jual Flow Meter Itron – Distributor Flow Meter Itron – Supplier Flow Meter Itron
SPESIFIKASI
| Nominal Diameter | 65mm |
| Starting Flowrite | 0.22 m³/h |
| Accuracy ± 2% from | 0.6 m³/h |
| Accuracy ± 5% from | 0.5 m³/h |
| Admissible Peak Flow (10′ max) | 200 m³/h |
| Max. Admissible Flowrite (Continuous) | 80 m³/h |
| Head Loss at Qmax : 0.15 bar | 0.5 bar |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP. 081260003742
email : admin@intidunia.id
WATER METER ITRON 1 INCH – FLOW METER ITRON
WATER METER ITRON 1 INCH – FLOW METER ITRON
WATER METER ITRON 1 INCH – FLOW METER ITRON
WATER METER ITRON 1 INCH – FLOW METER ITRONWATER METER ITRON MULTIMAG DN25 (1 INCH) – Distributor WATER METER ITRON MULTIMAG DN25 (1 INCH) – Jual WATER METER ITRON MULTIMAG DN25 (1 INCH) – Supplier WATER METER ITRON MULTIMAG DN25 (1 INCH)
SPESIFIKASI
| Size | : 25 mm ( 1 Inch ) |
| Type | : Multimag |
| Kelas Akurasi/Ratio | : R 50 |
| Aliran Mula | : <25 L/h |
| Aliran Minimum (Q1) | : 80L/h |
| Aliran transisi (Q2) | : 320 L/h |
| Aliran Nominal ( Q3) | : 4.0 m³/h |
| Aliran Maksimum (Q4) | : 5.0 m³/h |
| Aliran Extra multimag | : 7.0 m3/h |
| Temperatur Metrologis maks | : 30 ºC |
| Temperatur Kerja maksimum | : 50 ºC |
| Tekanan Kerja Maksimum | : 16 Bar |
| Pembacaan Maksimum | : 9999* m³ |
| Skla Pembacaan Terkcil | : 0.02 L |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
WATER METER ACTARIS 4 INCH (DN100)
WATER METER ACTARIS 4 INCH (DN100)
WATER METER ACTARIS 4 INCH (DN100)
WATER METER ACTARIS 4 INCH (DN100)FLOW METER ACTARIS 4 INCH DN100
SPESIFICATION
| Nominal Diameter | 100mm |
| Starting Flowrite | 0.38 m³/h |
| Accuracy ± 2% from | 1.5 m³/h |
| Accuracy ± 5% from | 0.9 m³/h |
| Admissible Peak Flow (10′ max) | 300 m³/h |
| Max. Admissible Flowrite (Continuous) | 200 m³/h |
| Head Loss at Qmax : 0.15 bar | 0.23 bar |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP. 081260003742
email : admin@intidunia.id
FLOW METER ITRON WOLTMAG M – ITRON 3″ 60/65mm
FLOW METER ITRON WOLTMAG M – ITRON 3″ 60/65mm
FLOW METER ITRON WOLTMAG M – ITRON 3″ 60/65mm
FLOW METER ITRON WOLTMAG M – ITRON 3″ 60/65mmSPESIFIKASI
- Nominal Diameter : 50 – 100 mm
- Starting Flow Rate : 80 – 250 l/h
- Max. Pressure : 20 bar
- Max. Flow Rate : 30 – 150 m3/h
- Max. Temperature : 50 degree C
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP. 081260003742
email : admin@intidunia.id
Flow meter Itron Flostar 1,5″ – Itron Water meter 1 1/2 Inch
Flow meter Itron Flostar 1,5″ – Itron Water meter 1 1/2 Inch
Flow meter Itron Flostar 1,5″ – Itron Water meter 1 1/2 Inch
Flow meter Itron Flostar 1,5″ – Itron Water meter 1 1/2 InchJual FLOW METER Itron FLOSTAR 1 1/2″
SPESIFIKASI :
- Nominal Diameter : 1½ ” – 4 ”
- Nominal Flow Rate : 11 – 55 m3/ h
- Max. Pressure : 10 bar
- Max. Flow Rate : 22 – 110 m3/ h
- Max. Temperature : 30 degree C
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
Flow Meter Itron Flodis 20 mm – Itron ¾ inch
Flow Meter Itron Flodis 20 mm – Itron ¾ inch
Flow Meter Itron Flodis 20 mm – Itron ¾ inch
Flow Meter Itron Flodis 20 mm – Itron ¾ inchSPESIFIKASI :
- Nominal Diameter : 15 – 32 mm
- Starting Flow Rate : 5 – 12 l/ h
- Max. Pressure : 16 bar
- Max. Flow Rate : 3 – 12 m3/ h
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER
Jual Flow Meter Itron Flodis 15 mm – Itron 0,5 Inch
Jual Flow Meter Itron Flodis 15 mm – Itron 0,5 Inch
Jual Flow Meter Itron Flodis 15 mm – Itron 0,5 Inch
Jual Flow Meter Itron Flodis 15 mm – Itron 0,5 InchSPESIFIKASI :
- Nominal Diameter : 15 – 32 mm
- Starting Flow Rate : 5 – 12 l/ h
- Max. Pressure : 16 bar
- Max. Flow Rate : 3 – 12 m3/
- Max. Temperature : 30 degree C
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP. 081260003742
email : admin@intidunia.id
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)GAS METER ITRON ACD G1.6
SPESIFICATIONS
| Gas Type | Natural gas, LPG and all non-corrosive gases | ||
| Cyclic Volume | 0.7 dm³ | ||
| Temperature Range | Gas | -10°C to +40°C | |
| Ambient | -10°C to +40°C | ||
| Storage | -30°C to +70°C | ||
| Maximum Operating Pressure | Steel | 0.5 bar | (0.1 bar HTL version) |
| Aluminium | 0.5 bar | (1.0 bar optional) | |
| Measuring Range | G0.6 | Qmin | 0.016 m³/h |
| Qmax | 1 m³/h | ||
| G1 | Qmin | 0.016 m³/h | |
| Qmax | 1.6 m³/h | ||
| G1.6 | Qmin | 0.016 m³/h | |
| Qmax | 2.5 m³/h (3 m³/h optional) | ||
| Casing Material | Sheet steel | ||
| Aluminium alloy | |||
| Accuracy | Class 1.5 | ||
| Approval | MID (04/22/EC) module H1 | ||
| Local approvals like IRAM2717:2000, Portaria 31/1997 | |||
| NOM-106-SCFI-2000 etc. | |||
| Flow Direction | Left to Right (standard) or Right to Left (optional) | ||
| Connections | Metric standards | M26 x 1.5 / M30 x 2 | |
| IS0228 standards | G7/8” / G3/4” / G1”1 | ||
| NPT standards | (Upon request) | ||
| BS746 standards | 1” | ||
| Others | W28.8×12 | ||
| Specials connections on request | |||
| Colour | Grey RAL 7040 for Latin America | ||
| Grey RAL 7042 for Asia | |||
| Other colors on request | |||
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)GAS METER ITRON RF1
SPESIFICATIONS
| Gas Type | Natural Gas, air, propane, butane, nitrogen and all non-corrosive |
| Metrology | Meter conforming to Australian Standard AS4647 and OIML R137-1 |
| Accuracy | Maximum permissible errors (% of
measurement) +/- 3% from Qmin. to 0.1 Qmax. +/- 1.5% from 0.1 Qmax. to Qmax. |
| Pressure drop | 125Pa at 8.5 m3/h (gas) |
| Temperature range | 2 dm3 |
| Maximum Operating Pressure | Operating: -10°C to +60°C
Storage: -40°C to +70°C |
| Measuring Range | 50kPA (1 Bar option) |
| Casing Material | Qmin 0.016 m3/h
Qmax 10 m3/h |
| Totalizer | Aluminium die-cast case with grounding
and polyester powder painting (resist 1000h salt spray test) |
| Transmission Rate | 0.01 m3 / rotation |
| Transmission System | Cyble™ target |
| Approval | Australian NMI-R137 |
| Dust and rain protection | IP67 (according EN60529) |
| Connections | 1” (BS746) |
| Flow Direction | Left to Right |
| Colour | Mushroom color (Y65 in accordance with
AS 2700 -1985) |
| Back Flow Protection | Back run stop |
| Transmission | Magnetic coupling |
| Weight | 3 kg |
| Pressure tap | Outlet connector – Thread no.2 B.A. (Ø4,7) according to PRS 11 |
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Turbine Fluxi-2000-TZ-EN-V3.0.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP.081260003742
email : admin@intidunia.id
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)GAS METER ITRON ROTARY METER DELTA
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Rotary Delta-EN-V4.1.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 894 45504
HP. 081260003742
email : admin@intidunia.id
