Itron Indonesia - Menjual Berbagai Jenis Meter Itron
Itron Indonesia menawarkan solusi lengkap dalam pengukuran, kontrol, analisa pada air, listrik, gas serta energi pemanas air dan ruangan. Meter ITRON telah terpasang lebih dari 300 juta meter di seluruh dunia.
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)WATER METER ITRON Woltex 3 INCH DN80
SPESIFICATION
| SIZE | 3 INCH ( 80 MM ) |
| STARTING FLOWRITE | 0.3 M3/H |
| ACCURACY ± 2% | 1.2 M3/H |
| ACCURACY ± 5% | 0.75 M3/H |
| ADMISSIBLE PEAK FLOW (10′ MAX) | 250 M3/H |
| MAX. ADMISSIBLE FLOWRITE (CONTINUOUS) | 120 M3/H |
| HEAD LOSS AT QMAX | 0.55 BAR |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
WATER METER ITRON Woltex 8 INCH (100 mm)
WATER METER ITRON Woltex 8 INCH (100 mm)
WATER METER ITRON Woltex 8 INCH (100 mm)
WATER METER ITRON Woltex 8 INCH (100 mm)WATER METER ITRON Woltex 8 INCH DN200
SPESIFICATION
| Size | 200 mm (8 inch ) |
| Type | Woltex |
| Starting Flowrate | 1.6 m³/h |
| Accuracy ± 2% From* | 3.5 m³/h |
| Accuracy ± 5% From* | 2.5 m³h |
| Admissible Flow ( 10’Max ) | 1000 m³/h |
| MAX.Admissible Flowrate ( continuous) | 800 m³/h |
| Head loss at Qmax | 0.12 Bar |
| max.Admissible temperatur | 50 º C |
| max.Admissible Presure | 20 Bar |
| Indicating range | 99999999 m³ |
| Cyble HF pulse weigt | 1000 L |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]

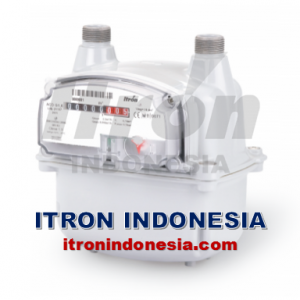

GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)GAS METER ITRON ACD G1.6
SPESIFICATIONS
| Gas Type | Natural gas, LPG and all non-corrosive gases | ||
| Cyclic Volume | 0.7 dm³ | ||
| Temperature Range | Gas | -10°C to +40°C | |
| Ambient | -10°C to +40°C | ||
| Storage | -30°C to +70°C | ||
| Maximum Operating Pressure | Steel | 0.5 bar | (0.1 bar HTL version) |
| Aluminium | 0.5 bar | (1.0 bar optional) | |
| Measuring Range | G0.6 | Qmin | 0.016 m³/h |
| Qmax | 1 m³/h | ||
| G1 | Qmin | 0.016 m³/h | |
| Qmax | 1.6 m³/h | ||
| G1.6 | Qmin | 0.016 m³/h | |
| Qmax | 2.5 m³/h (3 m³/h optional) | ||
| Casing Material | Sheet steel | ||
| Aluminium alloy | |||
| Accuracy | Class 1.5 | ||
| Approval | MID (04/22/EC) module H1 | ||
| Local approvals like IRAM2717:2000, Portaria 31/1997 | |||
| NOM-106-SCFI-2000 etc. | |||
| Flow Direction | Left to Right (standard) or Right to Left (optional) | ||
| Connections | Metric standards | M26 x 1.5 / M30 x 2 | |
| IS0228 standards | G7/8” / G3/4” / G1”1 | ||
| NPT standards | (Upon request) | ||
| BS746 standards | 1” | ||
| Others | W28.8×12 | ||
| Specials connections on request | |||
| Colour | Grey RAL 7040 for Latin America | ||
| Grey RAL 7042 for Asia | |||
| Other colors on request | |||
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)GAS METER ITRON RF1
SPESIFICATIONS
| Gas Type | Natural Gas, air, propane, butane, nitrogen and all non-corrosive |
| Metrology | Meter conforming to Australian Standard AS4647 and OIML R137-1 |
| Accuracy | Maximum permissible errors (% of
measurement) +/- 3% from Qmin. to 0.1 Qmax. +/- 1.5% from 0.1 Qmax. to Qmax. |
| Pressure drop | 125Pa at 8.5 m3/h (gas) |
| Temperature range | 2 dm3 |
| Maximum Operating Pressure | Operating: -10°C to +60°C
Storage: -40°C to +70°C |
| Measuring Range | 50kPA (1 Bar option) |
| Casing Material | Qmin 0.016 m3/h
Qmax 10 m3/h |
| Totalizer | Aluminium die-cast case with grounding
and polyester powder painting (resist 1000h salt spray test) |
| Transmission Rate | 0.01 m3 / rotation |
| Transmission System | Cyble™ target |
| Approval | Australian NMI-R137 |
| Dust and rain protection | IP67 (according EN60529) |
| Connections | 1” (BS746) |
| Flow Direction | Left to Right |
| Colour | Mushroom color (Y65 in accordance with
AS 2700 -1985) |
| Back Flow Protection | Back run stop |
| Transmission | Magnetic coupling |
| Weight | 3 kg |
| Pressure tap | Outlet connector - Thread no.2 B.A. (Ø4,7) according to PRS 11 |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Turbine Fluxi-2000-TZ-EN-V3.0.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)GAS METER ITRON ROTARY METER DELTA
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Rotary Delta-EN-V4.1.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
WATER METER ITRON Multimag 1 INCH (25 mm)
WATER METER ITRON Multimag 1 INCH (25 mm)
WATER METER ITRON Multimag 1 INCH (25 mm)
WATER METER ITRON Multimag 1 INCH (25 mm)FLOW METER ITRON Multimag 1 INCH (25 MM)
SPESIFICATION
| Size | : 25 mm ( 1 Inch ) |
| Type | : Multimag |
| Kelas Akurasi/Ratio | : R 50 |
| Aliran Mula | : <25 L/h |
| Aliran Minimum (Q1) | : 80L/h |
| Aliran transisi (Q2) | : 320 L/h |
| Aliran Nominal ( Q3) | : 4.0 m³/h |
| Aliran Maksimum (Q4) | : 5.0 m³/h |
| Aliran Extra multimag | : 7.0 m3/h |
| Temperatur Metrologis maks | : 30 ºC |
| Temperatur Kerja maksimum | : 50 ºC |
| Tekanan Kerja Maksimum | : 16 Bar |
| Pembacaan Maksimum | : 9999* m³ |
| Skla Pembacaan Terkcil | : 0.02 L |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
WATER METER ITRON MULTIMAG ¾ INCH (20 mm)WATER METER ITRON MULTIMAG ¾ INCH (20 mm)
SPESIFICATION
| SIZE | ¾ INCH ( 20 MM ) |
| NOMINAL FLOWRATE | 2.5 M3/h |
| MINIMUM FLOWRATE | 0.05 M3/h |
| MAXIMUM FLOWRATE | 5 M3/h |
| TRANSITIONAL FLOWRATE | 0.2 M3/h |
| MIN READING | 0.00002 M3 |
| MAX READING | 9.999 Or 99.999 M3 |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
Blog Kami
ITRON WOLTEX 2 INCH (50 mm)
Water meter Itron merupakan flow meter unggulan dengan teknologi yang sangat canggih dan telah terbukti merupakan salah satu brand untuk
ITRON FLUXI 2000/TZ
Gas Meter Itron adalah alat yang digunakan untuk mengukur laju aliran atau kuantitas gas yang bergerak atau mengalir. Teknik / cara
Kategori Produk
WATER METER
Jual Water Meter Itron 15mm - Water Meter Itron Multimag - Itron Water Meter Multimag TMII
Jual Water Meter Itron 15mm - Water Meter Itron Multimag - Itron Water Meter Multimag TMII
Jual Water Meter Itron 15mm - Water Meter Itron Multimag - Itron Water Meter Multimag TMII
Jual Water Meter Itron 15mm - Water Meter Itron Multimag - Itron Water Meter Multimag TMIIJual water meter ITRON 1/2″ - Water meter ITRON 15mm
Jual water meter Itron size 1/2 inch. Water meter Itron size 1/2 inch type Multimag TMII.
SPESIFICATION
| SIZE | 15mm |
| Type | Multimag |
| Kelas Akurasi/Ratio | R 50 |
| Aliran Mula | <10 L/h |
| Aliran Minimum (Q1) | 32 L/h |
| Aliran transisi (Q2) | 128 L/h |
| Aliran Nominal ( Q3) | 1.6 m³/h |
| Aliran Maksimum (Q4) | 2.0 m³/h |
| Aliran Extra multimag | 3.0 m3/h |
| Temperatur Metrologis maks | 30 ºC |
| Temperatur Kerja maksimum | 50 ºC |
| Tekanan Kerja Maksimum | 16 Bar |
| Pembacaan Maksimum | 9999* m³ |
| Skla Pembacaan Terkcil | 0.02 L |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
Harga Water Meter Itron - Water Meter Itron Multimag - Itron Water Meter
Harga Water Meter Itron - Water Meter Itron Multimag - Itron Water Meter
Harga Water Meter Itron - Water Meter Itron Multimag - Itron Water Meter
Harga Water Meter Itron - Water Meter Itron Multimag - Itron Water MeterWater Meter Itron 3/4″ - Harga Water Meter Itron size 20mm
SPESIFICATION
| SIZE | ¾ INCH ( 20 MM ) |
| NOMINAL FLOWRATE | 2.5 M3/h |
| MINIMUM FLOWRATE | 0.05 M3/h |
| MAXIMUM FLOWRATE | 5 M3/h |
| TRANSITIONAL FLOWRATE | 0.2 M3/h |
| MIN READING | 0.00002 M3 |
| MAX READING | 9.999 Or 99.999 M3 |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]

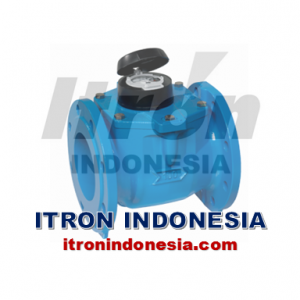

FLOW METER ITRON Woltex 4 INCH (100 mm)
FLOW METER ITRON Woltex 4 INCH (100 mm)
FLOW METER ITRON Woltex 4 INCH (100 mm)
FLOW METER ITRON Woltex 4 INCH (100 mm)FLOW METER ITRON Woltex 4 INCH DN100
SPESIFICATION
| Nominal Diameter | 100mm |
| Starting Flowrite | 0.38 m³/h |
| Accuracy ± 2% from | 1.5 m³/h |
| Accuracy ± 5% from | 0.9 m³/h |
| Admissible Peak Flow (10′ max) | 300 m³/h |
| Max. Admissible Flowrite (Continuous) | 200 m³/h |
| Head Loss at Qmax : 0.15 bar | 0.23 bar |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
WATER METER ITRON Woltex 2 INCH (50 mm)
WATER METER ITRON Woltex 2 INCH (50 mm)
WATER METER ITRON Woltex 2 INCH (50 mm)
WATER METER ITRON Woltex 2 INCH (50 mm)FLOW METER ITRON Woltex 2 INCH DN50
SPESIFICATION
| SIZE | 2 INCH ( 50 MM ) |
| STARTING FLOWRITE | 0.19 M3/H |
| ACCURACY ± 2% | 0.4 M3/H |
| ACCURACY ± 5% | 0.35 M3/H |
| ADMISSIBLE PEAK FLOW (10′ MAX) | 90 M3/H |
| MAX. ADMISSIBLE FLOWRITE (CONTINUOUS) | 50 M3/H |
| HEAD LOSS AT QMAX | 0.2 BAR |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)
WATER METER ITRON Woltex 3 INCH (80 mm)WATER METER ITRON Woltex 3 INCH DN80
SPESIFICATION
| SIZE | 3 INCH ( 80 MM ) |
| STARTING FLOWRITE | 0.3 M3/H |
| ACCURACY ± 2% | 1.2 M3/H |
| ACCURACY ± 5% | 0.75 M3/H |
| ADMISSIBLE PEAK FLOW (10′ MAX) | 250 M3/H |
| MAX. ADMISSIBLE FLOWRITE (CONTINUOUS) | 120 M3/H |
| HEAD LOSS AT QMAX | 0.55 BAR |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]

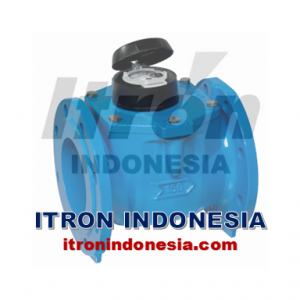

WATER METER ITRON Woltex 6 INCH (150 mm)
WATER METER ITRON Woltex 6 INCH (150 mm)
WATER METER ITRON Woltex 6 INCH (150 mm)
WATER METER ITRON Woltex 6 INCH (150 mm)FLOW METER ITRON Woltex 6 INCH DN150
SPESIFICATION
| Nominal Diameter | 150mm |
| Starting Flowrite | 1 m³/h |
| Accuracy ± 2% from | 3 m³/h |
| Accuracy ± 5% from | 1.5 m3/h |
| Admissible Peak Flow (10′ max) | 700 m³/h |
| Max. Admissible Flowrite (Continuous) | 500 m³/h |
| Head Loss at Qmax : 0.15 bar | 0.15 bar |
| Max Admissible Temperature | 50 °C |
| Max Admissible Pressure | 20 bar |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
GAS METER
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)
GAS METER ITRON ACD G1.6 (Residential Diaphragm Gas Meter)GAS METER ITRON ACD G1.6
SPESIFICATIONS
| Gas Type | Natural gas, LPG and all non-corrosive gases | ||
| Cyclic Volume | 0.7 dm³ | ||
| Temperature Range | Gas | -10°C to +40°C | |
| Ambient | -10°C to +40°C | ||
| Storage | -30°C to +70°C | ||
| Maximum Operating Pressure | Steel | 0.5 bar | (0.1 bar HTL version) |
| Aluminium | 0.5 bar | (1.0 bar optional) | |
| Measuring Range | G0.6 | Qmin | 0.016 m³/h |
| Qmax | 1 m³/h | ||
| G1 | Qmin | 0.016 m³/h | |
| Qmax | 1.6 m³/h | ||
| G1.6 | Qmin | 0.016 m³/h | |
| Qmax | 2.5 m³/h (3 m³/h optional) | ||
| Casing Material | Sheet steel | ||
| Aluminium alloy | |||
| Accuracy | Class 1.5 | ||
| Approval | MID (04/22/EC) module H1 | ||
| Local approvals like IRAM2717:2000, Portaria 31/1997 | |||
| NOM-106-SCFI-2000 etc. | |||
| Flow Direction | Left to Right (standard) or Right to Left (optional) | ||
| Connections | Metric standards | M26 x 1.5 / M30 x 2 | |
| IS0228 standards | G7/8” / G3/4” / G1”1 | ||
| NPT standards | (Upon request) | ||
| BS746 standards | 1” | ||
| Others | W28.8×12 | ||
| Specials connections on request | |||
| Colour | Grey RAL 7040 for Latin America | ||
| Grey RAL 7042 for Asia | |||
| Other colors on request | |||
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)
GAS METER ITRON RF1 (Residential Diaphragm Gas Meter)GAS METER ITRON RF1
SPESIFICATIONS
| Gas Type | Natural Gas, air, propane, butane, nitrogen and all non-corrosive |
| Metrology | Meter conforming to Australian Standard AS4647 and OIML R137-1 |
| Accuracy | Maximum permissible errors (% of
measurement) +/- 3% from Qmin. to 0.1 Qmax. +/- 1.5% from 0.1 Qmax. to Qmax. |
| Pressure drop | 125Pa at 8.5 m3/h (gas) |
| Temperature range | 2 dm3 |
| Maximum Operating Pressure | Operating: -10°C to +60°C
Storage: -40°C to +70°C |
| Measuring Range | 50kPA (1 Bar option) |
| Casing Material | Qmin 0.016 m3/h
Qmax 10 m3/h |
| Totalizer | Aluminium die-cast case with grounding
and polyester powder painting (resist 1000h salt spray test) |
| Transmission Rate | 0.01 m3 / rotation |
| Transmission System | Cyble™ target |
| Approval | Australian NMI-R137 |
| Dust and rain protection | IP67 (according EN60529) |
| Connections | 1” (BS746) |
| Flow Direction | Left to Right |
| Colour | Mushroom color (Y65 in accordance with
AS 2700 -1985) |
| Back Flow Protection | Back run stop |
| Transmission | Magnetic coupling |
| Weight | 3 kg |
| Pressure tap | Outlet connector - Thread no.2 B.A. (Ø4,7) according to PRS 11 |
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)GAS METER ITRON FLUXI 2000/TZ (Turbine Gas Meter)
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Turbine Fluxi-2000-TZ-EN-V3.0.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)
GAS METER ITRON ROTARY METER DELTA (Commercial & Industrial Meter)GAS METER ITRON ROTARY METER DELTA
BROSUR / KATALOG UNTUK SPESIFIKASI LENGKAP
KLIK DISINI :
Brochure Rotary Delta-EN-V4.1.pdf
Hubungi :
ITRON INDONESIA
Telp. (021) 6220 1096
HP. 0821 9775 9115
[email protected]
